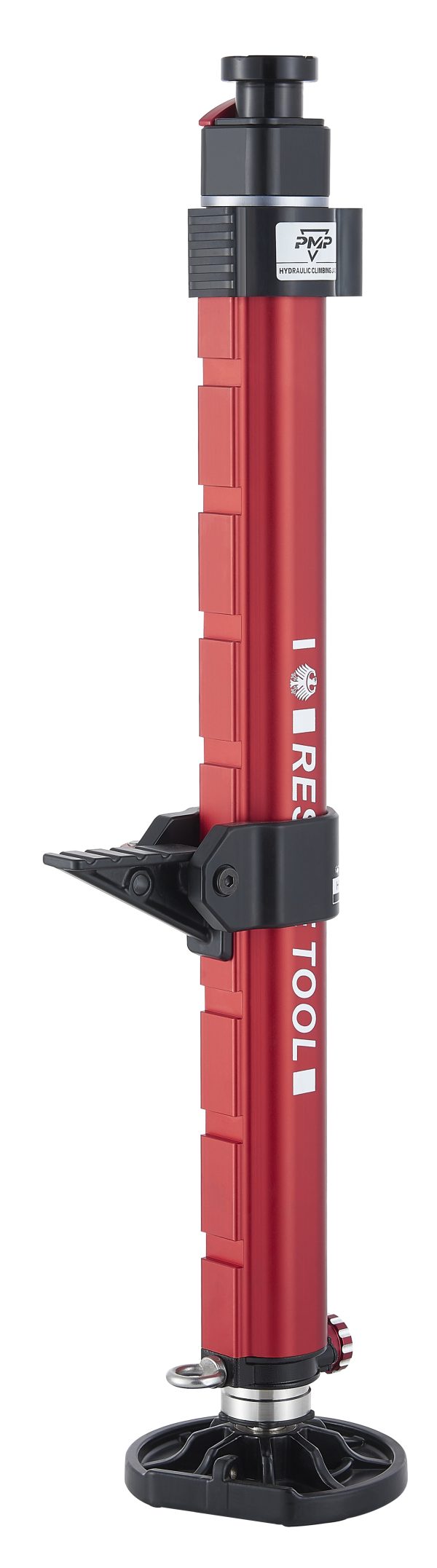

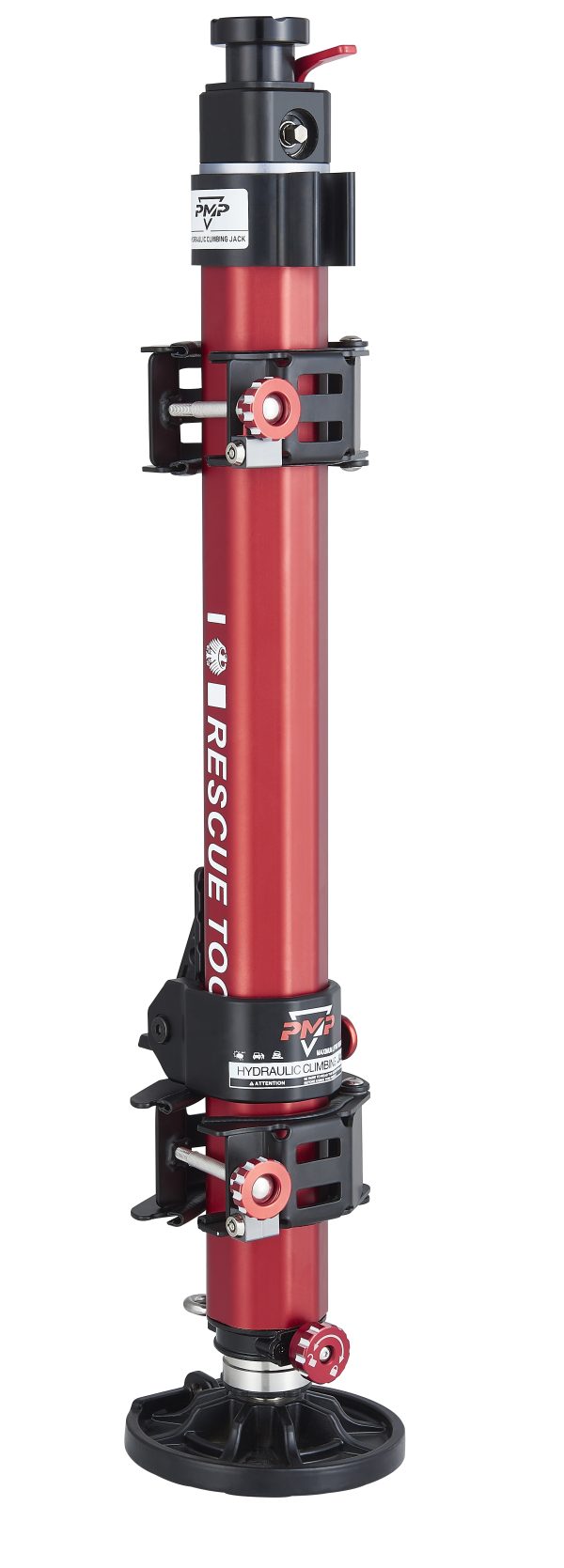

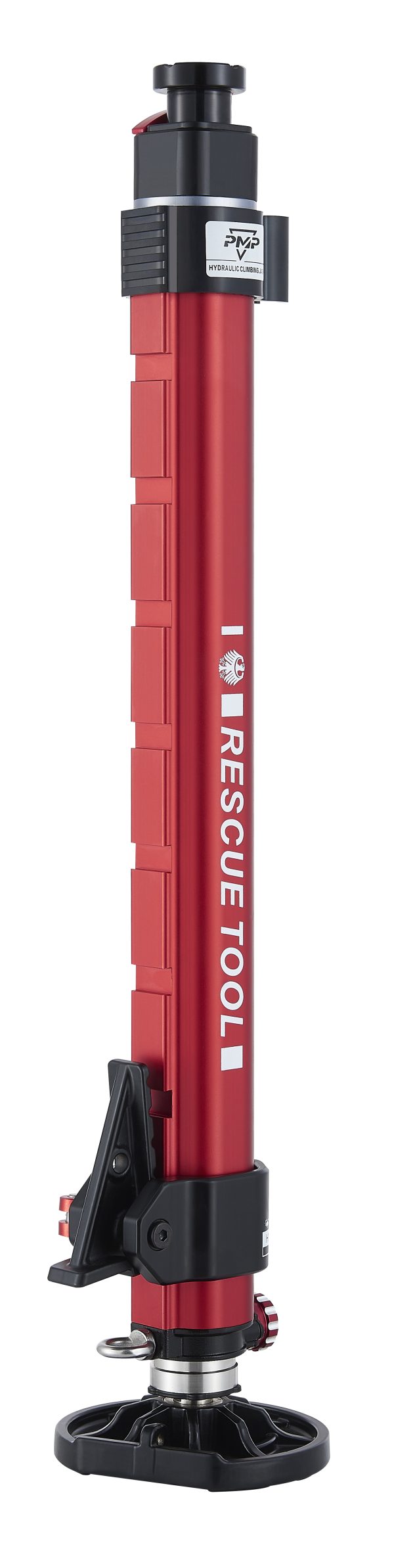

Multi-Power Hydraulic Climbing Jack

Please scan the QR code at the bottom of the page or click "Contact" to get in touch with us.

Specification:
Compression height: 820mm

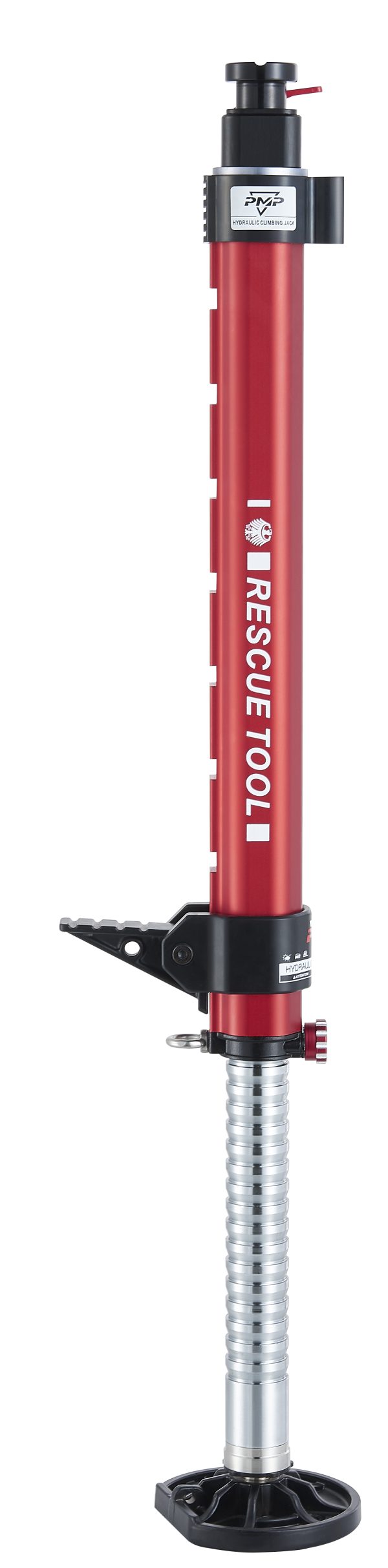

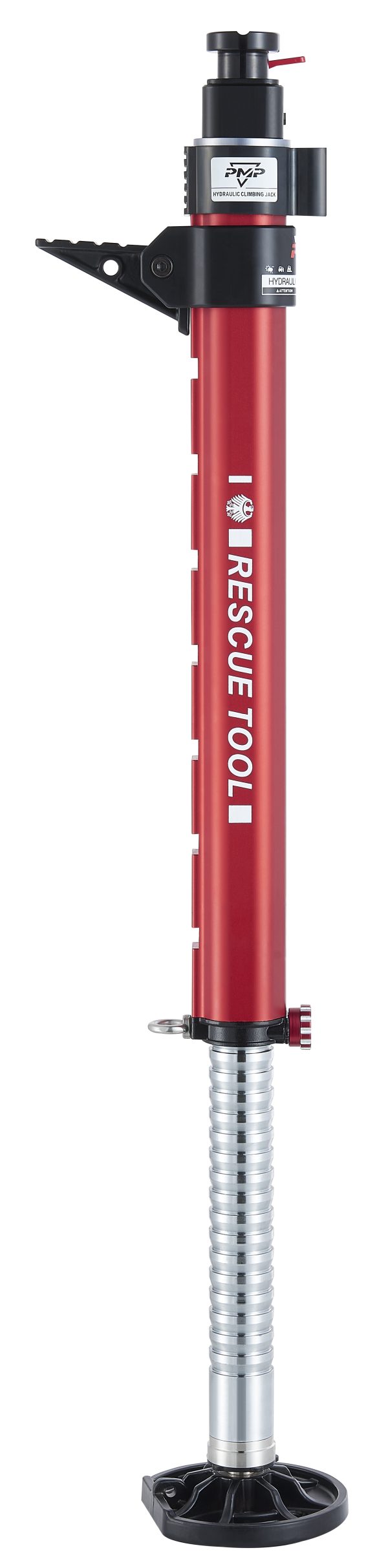

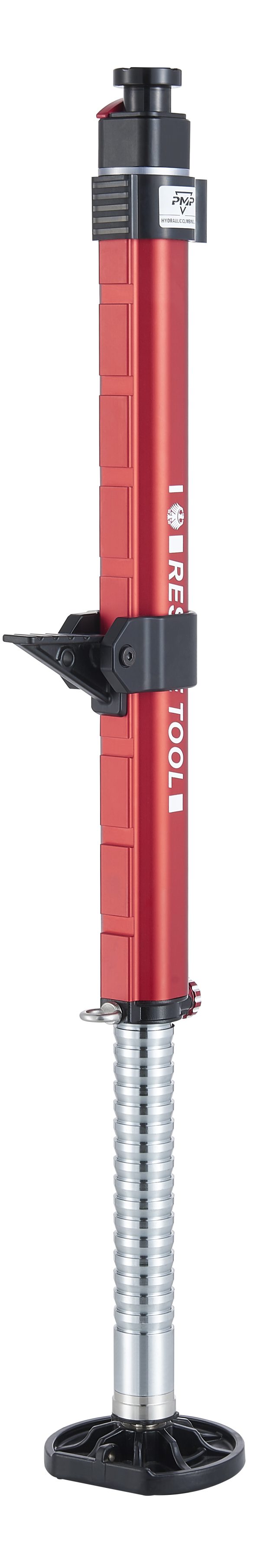

Extension height: 1170mm
Hydraulic stroke: 360mm
Maximum lifting weight: 2T
Minimum lifting height of top: 820mm
Maximum lifting height of top: 1170mm
Minimum lifting height of side:145mm
Maximum lifting height of side: 995mm
Net weight: 10kg(including tyre lifter)
Gross weight: 12.5kg

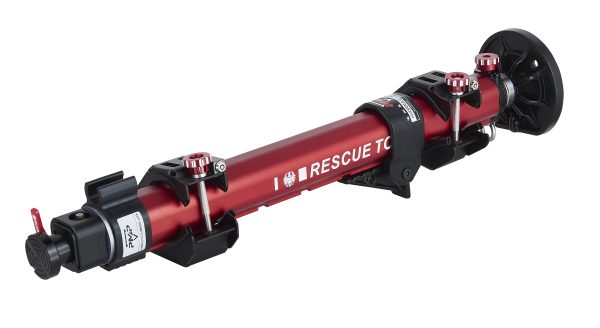

Storage volume: 0.042CBM(98x20x21cm)
Body Material: 6061 aircraft aluminum

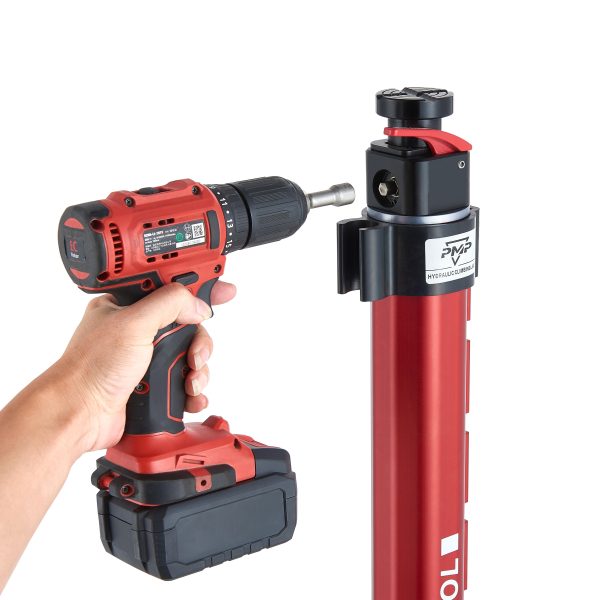

Recommend using electric drills, cannons, and gas cannons(50-300N)(1500-2500 RPM)
Use tools with 9mm sleeves to drive the product.

Product Introduction:

Key Advantages:

Sealed Oil Bladder(Patent): Exclusive oil bladder technology, fully sealed and leak-proof. Can be stored in any orientation, and the hydraulic oil can be reused permanently without refilling.
Safety Locking Mechanism (Patent): Mechanical lock. Once engaged, it allows lifting only and prevents accidental lowering, providing ultimate protection against failure and preventing sudden load drops.
Spiral Buffer Piston: Unique threaded piston design provides a buffering effect in case of malfunction, allowing the load to descend slowly for enhanced safety.
Sand-Resistant Base Seal: Specially sealed base effectively blocks sand from entering the internal mechanism, ensuring reliable operation in extreme environments like deserts.
Multi-Power Drive for Effortless Efficiency: Revolutionizes multi-power drive options (e.g., power drill, electric hydraulic power pack, or gasoline-powered unit). By connecting a standard power drill or other power sources to the dedicated drive interface, it enables fast and labor-saving powered lifting, significantly boosting rescue speed and reducing physical effort.

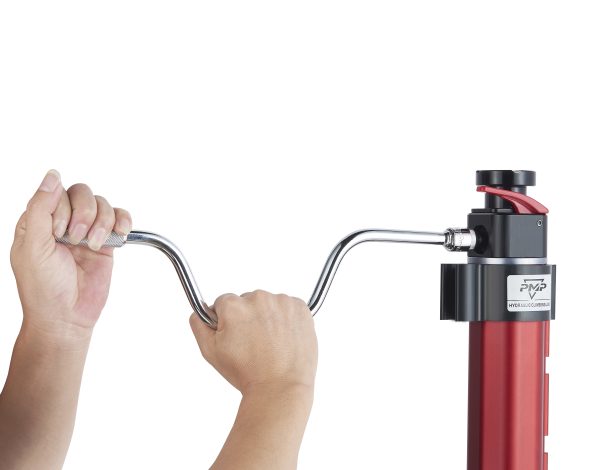

This powered High-Lift Jack represents a revolutionary leap in drive technology,built upon the fully-sealed and high-safety foundation of the Hydraulic Climbing Jack-III. By adapting to universal power drills, electric hydraulic power packs, or gasoline-powered units, it transforms time-consuming and labor-intensive manual cranking into effortless powered lifting. It is the next-generation rescue tool where smart innovation meets unwavering reliability.
